MICRO-TEC DIVIDING TABLE RTE165

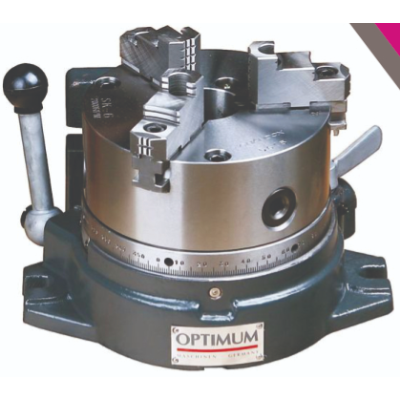

Horizontal-Vertical Circular Dividing Tables with 3-Jaw Chuck RTE 165

Premium Construction: Made from high-quality Meehanite cast for durability and performance.
Precision Bearings: Features a precision taper roller bearing for reliable and accurate operation.
Stability Under Load: Designed to maintain stability even with heavy workpieces.
Large Spindle Hole: Allows for clamping of longer workpieces with ease.
Direct Dividing: Utilizes locking discs for increased manufacturing speed, ideal for mass production.
Degree Division: Equipped with a 360º scale for precise measurements.
Versatile Divisions: Direct dividing via locking discs with 24 positions (15º division).
Three-Jaw Chuck: Includes a clamping disk with three grooves for secure gripping.
Locking Disks: Comes with 7 locking disks for 2, 3, 4, 6, 8, 12, and 24 divisions.
Technical Data: RT 150
Centring Cone: MT2
Transmission Ratio: 90:01:00
Disk Size: 150 mm
Construction Height: 79 mm
Length: 204 mm
Width: 156 mm
Centre Height: 102 mm
Slot Width: 11 mm
Number of Grooves: 4
Indirect Dividing Equipment: Yes
Net Weight: 12 kg
The RTE 165 Horizontal-Vertical Circular Dividing Table is engineered for precision and efficiency, making it an essential tool for a variety of machining tasks.
