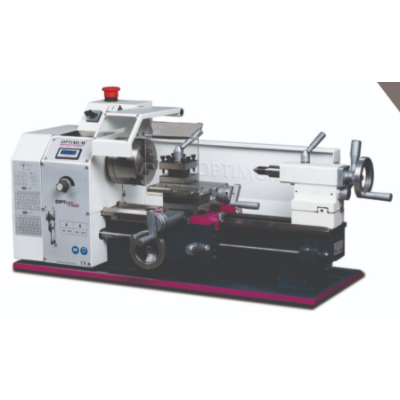

MICRO-TEC LATHE D200 X 300 VARIO

Lathe with Infinitely Variable Speed Control and Digital Display

Elevate your machining precision with our advanced lathe, featuring infinitely variable speed control and a digital speed display.

Technical Specifications:

Connection: 230 V / 1 Ph ~ 50 Hz
Spindle Drive Motor: 600 W
Spindle Taper: MT 3
Tool Holder Seat Height (Max): 12 mm
Center Height: 100 mm
Center Width: 300 mm
Maximum Turning Diameter: 200 mm
Turning Diameter Over Cross Slide: 110 mm
Bed Width: 100 mm
Spindle Speeds: 150 – 2,500 RPM
Number of Speed Steps: 2, electrically adjustable
Top Slide Travel: 55 mm
Cross Slide Travel: 75 mm
Longitudinal Feed Rates: 0.1 / 0.2 mm/U
Metric Pitch Range (14): 0.25 – 3 mm/U (14)
Inch Pitch Range (12): 44 – 8 Gg/1 (12)
Tailstock Seat: MT 2
Tailstock Sleeve Travel: 65 mm
Dimensions (L x W x H): 830 x 425 x 360 mm
Net Weight: 61 kg
Description:
This lathe combines precision engineering with user-friendly features, including an infinitely variable speed control and a digital speed display for enhanced performance.

Construction: Heavily ribbed prism bed made of steel casting, inductively hardened and precision ground, ensuring durability and stability.
Precision: Hardened spindle nose (DIN 6350) guarantees true running accuracy better than 0.009 mm.
Automatic Drive: Features an automatic longitudinal/leading spindle drive with longitudinal, cross, and top slides.
Safety Features: Emergency stop button, lathe chuck protection, and thrust bearing for secure operation.
Bearing Quality: Leading spindle supported by two porous bearings and fitted with P5 quality tapered roller bearings for enhanced reliability.
Key Features:

Digital Speed Display: Easy-to-read for precise monitoring.
Chip Protection: Integrated at the top slide for a cleaner workspace.
Quadruple Tool Holder: Versatile and turnable for various applications.
Adjustable Tailstock: Perfect for taper turning, featuring an adjustable precision scale of 0.02 mm.
Delivery Information:
Includes:

Three-jaw chuck Ø 100 mm
Steady centers MT 2 and MT 3
Splash guard and chip tray
Quadruple tool holder
Change gear kit
Operating tool
Optimize your workshop with this reliable and efficient lathe, perfect for both professional and hobbyist applications!
