MICRO-TEC MAGNETIC BASE DRILL MACHINE 50MM METALKR

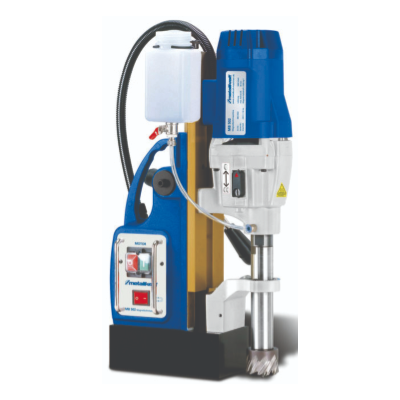

Magnetic Drilling Machine: Specifications and Features
Technical Specifications
Collet and Spindle
Spindle Type: Fixed
Drill Type: Weldon 3/4?
Core Drilling
Maximum Core Drill Diameter: 50 mm
Maximum Drilling Depth for Core Drilling: 50 mm
Dimensions and Weight
Length: Approximately 290 mm
Width/Depth: Approximately 270 mm
Height: Approximately 355 mm
Weight: Approximately 14.8 kg
Electrical Data
Supply Voltage: 230 V
Mains Frequency: 50 Hz
Full Drilling
Maximum Drill Diameter (with Adapter & Chuck): 13 mm
Maximum Drilling Depth (with Adapter & Chuck): 140 mm
Magnet Specifications
Holding Force: 17,000 N
Magnet Base Length: 180 mm
Magnet Base Width: 90 mm
Speed Range
Speeds Under Load: 180 / 270 RPM
Product Description
The Magnetic Drilling Machine is engineered for versatility and efficiency in core drilling applications. This reliable tool is equipped to handle various drilling tasks with ease.

Key Features:
Compatible with 19 mm Weldon Shank: Ideal for core drills.
Robust Construction: Designed for job site durability with double insulation.
High Magnetic Holding Force: Ensures stability during operation with a maximum holding force of 17,000 N.
Integrated Cooling System: Allows coolant to flow through the drill for optimal performance.
Quick-Action Adapter: Facilitates rapid changeovers between core drills and full drills.
Two Speed Options: Provides flexibility for different drilling applications.
Delivery and Equipment:
Included Accessories:
1 coolant tank and coolant line
1 protection device
Operating tool
Plastic carrying case
1 chain
The Magnetic Drilling Machine is your go-to solution for high-performance drilling tasks, combining power, precision, and convenience in one reliable package.
