MICRO-TEC BANSAW METAL DOUBLE MITRE

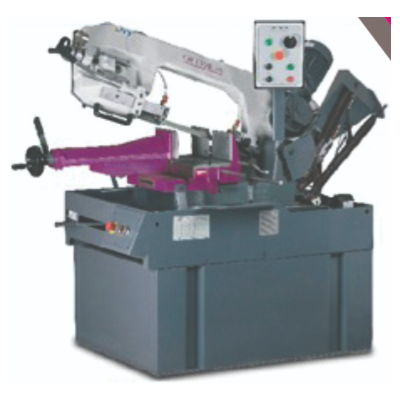

Metal Band Saw – High Precision and Heavy-Duty Sawing for Metal Cutting

The Metal Band Saw is an industrial-grade, heavy-duty machine designed for high-accuracy metal cutting with ease. Equipped with a double mitre function, this saw ensures low-noise operation and delivers vibration-free cutting, resulting in high cutting precision. With two switchable speeds (36/72 m/min), it is ideal for a variety of materials and cutting applications, including large and tough workpieces.

Key Features:
Heavy Industrial Build: Designed for robust, long-lasting performance, perfect for heavy-duty tasks.
Vibration-Free Operation: Provides high cutting accuracy for smooth, precise cuts.
Adjustable Mitre Angles: Mitre adjustment of -60° via a rotating saw bow for angled cuts.
Saw Band Guidance: Ball bearings combined with hard metal plates for optimum cutting results.
Bimetallic Saw Band: Comes with a high-grade bimetallic saw band for improved durability and cutting efficiency.
Quick-Action Vice: Robust vice for secure clamping, adjustable via handwheel with a quick-action lever for fast workpiece mounting.
Adjustable Roller Support: For handling long and heavy workpieces with ease.
User-Friendly Controls: Includes a main switch, emergency-stop button, speed selector, and coolant pump switch on an easy-to-use control panel.
Coolant System: Integrated coolant pump to extend saw blade life and ensure cleaner cuts.
Hydraulic Cylinder: Offers precise, infinitely variable saw bow movement for accuracy.
CE Conformity & EMC Filter: Compliant with safety and electromagnetic compatibility standards.
Precise Settings & Adjustments:
Saw Band Tension: Easily adjustable using a manometer for precise settings.
Limit Stops: Adjustable within 1° accuracy, ensuring exact cuts at specified angles.
Feed Control: Continuously variable for optimized cutting speeds based on material type.
Chip Brush: Automatically clears chips for a clean work environment.
Technical Specifications:
Dimensions: 1750 mm (L) x 1075 mm (W) x 1420 mm (H)
Maximum Cutting Capacity:
Round Material: 270 mm at 0°
Square Material: 230 mm at 0°
Rectangle Horizontal: 230 x 350 mm at 0°
Round Material: 230 mm at -45°
Square Material: 170 mm at -45°
Rectangle Horizontal: 140 x 200 mm at -45°
Round Material: 230 mm at +45°
Square Material: 200 mm at +45°
Rectangle Horizontal: 210 x 220 mm at +45°
Round Material: 140 mm at +60°
Square Material: 140 mm at +60°
Rectangle Horizontal: 140 x 220 mm at +60°
Saw Band Speed: Two speeds – 36/72 m/min
Saw Band Length: 2925 mm
Saw Band Width: 27 mm
Saw Band Thickness: 0.9 mm
Cutting Angle: -45° to +60°
Saw Bow Lift: Manual adjustment
Additional Features:
Hydraulic Cylinder: For precise and controlled saw bow lowering.
Emergency Stop Button: Ensures immediate shutdown in case of an emergency.
Material Stop: Includes a scale for precise material positioning.
Coolant Pump: Keeps the blade and material cool during operation.
Net Weight: 550 kg
Power Supply: 400V, 3-Phase
Motor Output: 2.2 kW
Coolant Pump Output: 50 W
Frequency: 50 Hz

Ideal Applications:
This metal band saw is perfect for cutting a wide range of metal materials, making it a valuable tool for industries such as metalworking, automotive, aerospace, and fabrication. Its robust design and precise functionality make it suitable for high-volume and heavy-duty cutting tasks. Whether for professional workshops or industrial facilities, this saw provides efficient, accurate, and reliable performance.
