MICRO-TEC CAMSHAFT ALIGN BMW M52/54/56

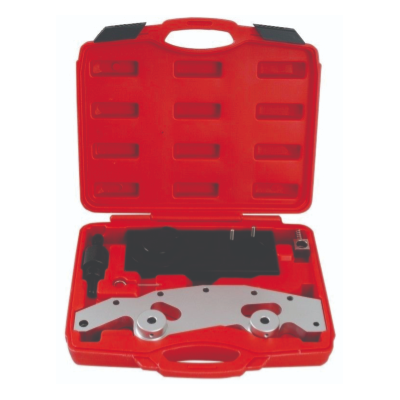

BMW Double VANOS Camshaft Timing Tool Kit

The BMW Double VANOS Camshaft Timing Tool Kit is essential for precise timing adjustments on BMW M52TU, M54, and M56 engines. This comprehensive set includes everything you need to ensure accurate valve timing when servicing your vehicle.

Kit Components:
Jig Alignment Plate (Ref # 116150): Used for setting valve timing adjustments on engines with VANOS.
Sprocket Mounting Jig (Ref # 116180): Facilitates the preassembly of sprockets with chains on camshafts.
Rigid Chain Tensioner (Ref # 114220): Maintains primary chain tension during assembly.
Lock Chain Tensioner Pin (Ref # 113292): Locks tension on the timing chain over time.
VANOS Compressed Air Connection (Ref # 113450): Allows for pressurization of single and double VANOS units during inspection or service.
Applications:
This tool kit is compatible with the following BMW 6-cylinder engines:

M52TU (1998-2000)
M54 (2001-2004)
M56 (2003-Present)
Specific Model Applications:
M52TUB25:

1997-2001 E46 323i/323Ci/323ti
1998-2001 E39 523i
1998-2001 E36/7 Z3
M52TUB28:

1997-2001 E46 328i/328Ci
1998-2001 E39 528i
1998-2001 E38 728i
M54B22:

2001-2003 E46 320i/320Ci
2001-2003 E39 520i
2003-2005 E85 Z4 2.2i
M54B25:

2001-2006 E46 325i/325xi
2003-2004 E60/E61 525i/525xi
2004-2006 E83 X3 2.5i
M54B30:

2001-2005 E46 330i/330xi
2003-2005 E60 530i
2004-2006 E83 X3 3.0i
This Camshaft Alignment Tool Kit is a must-have for any BMW technician or enthusiast looking to perform precise timing adjustments on M52TU, M54, and M56 engines. Ensure your engine runs smoothly with this essential timing tool kit.
