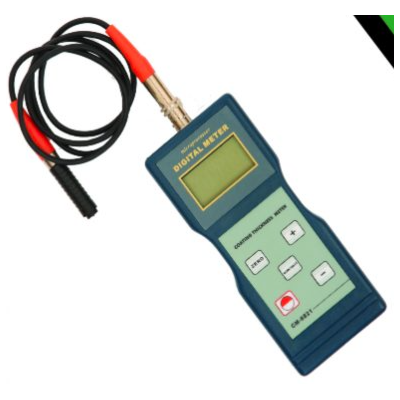

MICRO-TEC DIGITAL COATING THICKNESS GAUGE

Digital Coating Thickness Gauge – High Accuracy for Non-Magnetic and Magnetic Materials

The Digital Coating Thickness Gauge is a professional-grade tool designed to measure the thickness of coatings on various materials with high accuracy and ease. Ideal for use in laboratories, manufacturing facilities, automotive applications, and harsh field conditions, this gauge ensures precise measurement of coating layers, including paint, plastic, enamel, copper, aluminum, and more.

Key Features:
Wide Measuring Range (0–1000µm / 0–40mil): Capable of measuring a broad range of coating thicknesses, this gauge is perfect for both thin and thick coatings.
High Resolution & Accuracy: Offers a resolution of 0.1µm for measurements below 100µm and 1µm for measurements over 100µm. Accuracy is ±1-3% or ±2.5µm (whichever is greater), ensuring reliable and consistent results.
Automatic Calibration: The gauge performs automatic calibration when no substrate or metal material is near the sensor probe. It also allows for re-calibration using an included iron substrate block or an uncoated standard.
Digital Display: Clear, easy-to-read 4-digit LCD display provides precise measurements with no guessing or errors. The display is designed for quick interpretation and eliminates human error.
Durable & Lightweight Construction: Featuring a robust ABS plastic housing, this coating thickness gauge is built for long-lasting use in various environments. Its ergonomic design ensures it is comfortable to hold and operate.
Multi-Application Use: Perfect for use in laboratories, powder coating companies, manufacturing, paint suppliers, body shops, auto detailers, and other industries where accurate coating measurements are crucial. It's particularly effective for measuring the thickness of plating layers, lacquer layers, enamel layers, and more.
Why Choose This Digital Coating Thickness Gauge?
This Digital Coating Thickness Gauge provides high-precision measurements for a wide range of materials, including magnetic and non-magnetic surfaces. With its automatic calibration and easy-to-read digital display, it’s perfect for professionals who need to measure the thickness of coatings accurately and quickly.

Whether you're in the automotive industry, manufacturing, or paint coating, this gauge is ideal for measuring the thickness of coatings such as paint, lacquer, porcelain enamel, phosphate layers, and metallic coatings. It’s built to perform under tough conditions and is a trusted tool for quality control, ensuring consistent results every time.

Product Specifications:
Operating Principle: Magnetic Induction (F)
Measuring Range: 0–1000µm / 0–40mil
Resolution:
0.1µm (for measurements up to 99.9µm)
1µm (for measurements over 100µm)
Accuracy: ±1–3% or ±2.5µm (whichever is greater)
Min. Measuring Area: 6mm
Min. Sample Thickness: 0.3mm
Metric/Imperial Convertible: Yes
Automatic Calibration: Yes (when no metal substrate is near the probe)
Power Supply: 4 x AA 1.5V batteries
Display: 4-digit, 10mm LCD
Operating Conditions:
Temperature: 0–50°C (32–122°F)
Humidity: <80%
Battery Indicator: Low Battery Indicator
Dimensions (Main Unit): 67 x 168 x 31mm
Weight:
Main Unit: 155g (battery excluded)
Whole Packaging: 690g (battery excluded)
Applications:
Paint & Coating Thickness Measurement: Ideal for automotive body shops, manufacturers, and refinishing applications.
Quality Control & Testing: Widely used in industries such as automotive, manufacturing, steel, aluminum, and more.
Field Use & Laboratory Testing: Suitable for both in-field use and laboratory settings, ensuring precise measurements in any environment.
Upgrade your coating measurement process with the Digital Coating Thickness Gauge – a reliable, high-accuracy tool for non-magnetic and magnetic material testing, designed for professionals who demand precision in every measurement.
