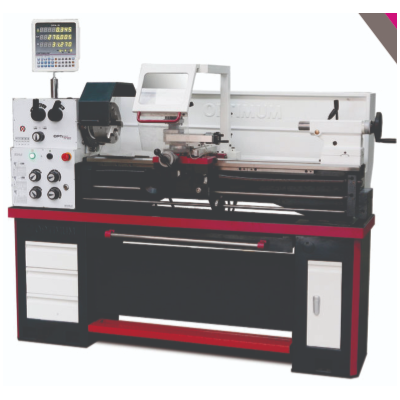

MICRO-TEC LATHE 360X1000 TH3610D WITH DPA21

OPTIturn TH 3610D Mechanical Lathe

Enhance your machining capabilities with the OPTIturn TH 3610D, a fully equipped mechanical lathe designed for precision and durability.

Technical Specifications:

Length: 1,930 mm
Width/Depth: 725 mm
Height: 1,620 mm
Weight: 610 kg
Power Drive Motor: 1.5 kW
Electrical Voltage: 400 V
Phase: 3 Ph
Current Type: ~
Power Frequency: 50 Hz
Spindle Taper: Camlock DIN ISO 702-2 No. 5
Center Height: 180 mm
Distance Between Centers: 980 mm
Circumferential Diameter Over Machine Bed: 356 mm
Circumferential Diameter in Bed Bridge: 516 mm
Turning Length in Bed Bridge: 160 mm
Bed Width: 187 mm
Speed Range: 70 – 2,000 RPM
Number of Speed Ranges: 8
Travel Specifications:

X-Axis Travel: 100 mm
Y-Axis Travel: 170 mm
Tailstock: MK 3
Tailstock Quill Stroke: 120 mm
Spindle Taper: MK 6
Steel Holder Pickup Height Max: 16 mm
Feed Rates:

Longitudinal Feed Area: 0.052 – 1.392 mm/rev (32 feeds)
Flat Feed Area: 0.014 – 0.38 mm/rev (32 feeds)
Gradient Metric: 0.4 – 7 mm/rev (26 slopes)
Gradient Inches: 56 – 4 Gg/in (34 slopes)
Description:
The TH 3610D features a hardened and ground Z-axis guideway and a spindle mount with guaranteed concentricity of better than 0.015 mm. Its gears and shafts are precision-hardened and run in an oil bath for longevity.

Control Features: Equipped with a digital position indicator (DPA 21), a splash-proof membrane keypad, and an 8-digit display for the X, Z, and Z0 axes, ensuring higher work accuracy and reduced error rates.
Safety Features: Includes a motor protection switch, lockable main switch, emergency stop device with foot control, and safety handwheels with release functions on the X and Z axes.
Room Amenities:

Switch Cabinet: 24V DC power supply with all contactors and relays from Siemens or Schneider.
Main Spindle: Operates in an oil bath with smooth, hardened, and ground gears.
Tailstock: Adjustable for taper turning, with fine scale handwheel (0.025 mm).
LED Machine Light: Integrated into chip protection for enhanced visibility.
Delivery Information:

Fixed Bezel Passage: Max. Ø 100 mm
Running Bezel Passage: Max. Ø 95 mm
Included Accessories: LED machine light, reduction sleeve MK 6 / MK 3, two fixed centering points MK 3, quadruple tool holder, change gear set, initial machine filling with quality oil, and operating tools.
Don’t forget to include the lathe chuck for optimal performance!
