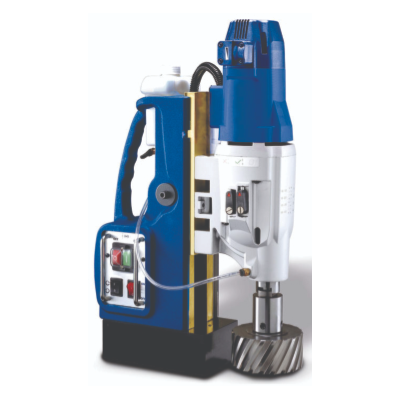

MICRO-TEC MAGNETIC BASE DRILLING MACHINE 120MM MET

Magnetic Core Drill: Specifications and Features
Technical Specifications
Maximum Core Drill Diameter: 120 mm
Maximum Drilling Depth (Core Drill): 75 mm
Maximum Diameter (Full Drill, Directly Mounted): 32 mm
Maximum Drilling Depth (Full Drill, Directly Mounted): 150 mm
Maximum Diameter (Full Drill with Adapter & Chuck): 16 mm
Maximum Drilling Depth (With Adapter & Chuck): 110 mm
Spindle Taper: MK 3
Weldon Shank Size: 19 mm
Speed Settings: 35-120 / 70-220 / 80-250 / 140-450 RPM
Motor Power: 2000 W
Voltage: 230V
Phase: Single Phase
Current Type: AC
Power Frequency: 50 Hz
Magnetic Holding Power: 32,000 N
Magnetic Base Dimensions: 210 x 120 mm
Overall Dimensions: 330 x 125 x 476 mm
Weight: 28.3 kg
Sound Pressure Level (Lp): 97 dB (A)
Sound Power Level (Lw): 110 dB (A)
Measurement Uncertainty (K): 3 dB (A)
Product Description
The Magnetic Core Drill is a high-quality drilling machine designed for versatile applications, allowing you to drill large diameters quickly and efficiently.

Key Features:
Four Variable Speed Ranges: Tailor the speed to your specific drilling needs.
Powerful 2,000 Watt Motor: Ensures robust performance and durability.
Impressive Magnetic Holding Force: Maximum holding power of 32,000 N provides stability during operation.
Forward/Reverse Operation: Flexibility for various drilling tasks.
Spindle Mount MK 3: Compatible with core drills featuring a 19 mm Weldon shank.
Sturdy Drill Guide: Features a long and deeply mounted quill holder for enhanced stability.
Double Insulation: Safeguards against electrical hazards, making it ideal for job sites.
Integrated Coolant System: Coolant is circulated through the drill to extend tool life and improve performance.
Quick Conversion: Easily switch from core drilling to full drilling with minimal effort.
Quality Construction: Ensures safe and reliable operation.
Included Accessories:
1 Coolant tank and coolant line
1 Protective device
Operating tool
Plastic carrying case
1 Chain
The Magnetic Core Drill is an essential tool for professionals seeking efficiency and reliability in their drilling tasks. Upgrade your toolkit with this versatile machine!
