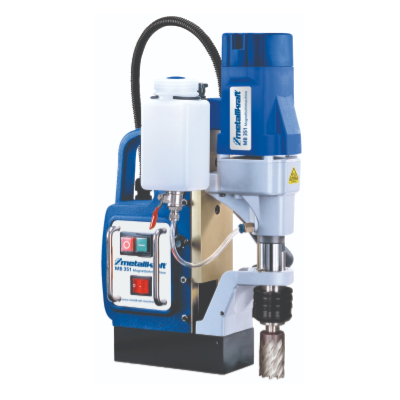

MICRO-TEC MAGNETIC BASE DRILLING MACHINE 35MM META

Magnetic Drilling Machine: Specifications and Features
Technical Specifications
Maximum Drill Diameter (Core Drilling): 35 mm
Maximum Drilling Depth (Core Drilling): 50 mm
Maximum Drill Diameter (Full Drilling with Adapter and Chuck): 13 mm
Maximum Drilling Depth (Full Drilling with Adapter and Chuck): 140 mm
Spindle Chuck Size: M 27
Weldon Shaft Holder Size: 19 mm
Speed Under Load: 330 RPM
Motor Power Output: 1.1 kW
Electrical Connections: 230 V
Phase: Single Phase
Current Type: AC
Mains Frequency: 50 Hz
Magnetic Holding Force: 15,000 N
Magnetic Foot Dimensions: 165 x 80 mm
Overall Dimensions: 450 x 330 x 260 mm
Weight: 12.6 kg
Sound Pressure Level (Lp): 91.5 dB(A)
Sound Power Level (Lw): 102.5 dB(A)
Measurement Uncertainty (K): 3 dB(A)
Product Description
The Magnetic Drilling Machine is a high-quality tool designed for efficient and versatile drilling applications. Ideal for professionals, this machine excels at quickly and economically drilling large diameters.

Key Features:
Core Drill Compatibility: Designed for use with core drills featuring a 19 mm Weldon shaft.
Stable Drilling Guidance: Long, deep-mounted spindle sleeve guidance ensures precise drilling.
Double Insulation: Earth-earthed and double insulated, making it perfect for job sites.
Strong Magnetic Holding Force: With a magnetic holding power of 15,000 N, it provides reliable stability during operation.
High-Quality Construction: Built for durability and reliability.
Integrated Coolant System: Coolant is routed through the drill to extend tool life and enhance performance.
Quick-Release Chuck: Easily replace core drills for increased efficiency.
Seamless Conversion: Transition from core drilling to full drilling with minimal effort.
Delivery Information:
Included Accessories:
Coolant tank and coolant line
Protective device
Operating tool
Plastic carrying case
Chain
Model MB 754: Also includes a clearing cotter
The Magnetic Drilling Machine is a must-have for any professional toolkit, offering reliability and performance for all your drilling needs!
