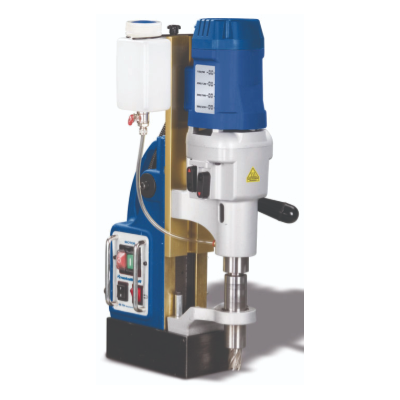

MICRO-TEC MAGNETIC BASE DRILLING MACHINE 75MM META

Magnetic Drilling Machine: Specifications and Features
Technical Specifications
Maximum Drill Diameter (Core Drilling): 75 mm
Maximum Drilling Depth (Core Drilling): 50 mm
Maximum Drill Diameter (Full Drilling, Directly Mounted): 32 mm
Maximum Drilling Depth (Full Drilling, Directly Mounted): 150 mm
Maximum Drill Diameter (Full Drilling with Adapter and Chuck): 16 mm
Maximum Drilling Depth (Full Drilling with Adapter and Chuck): 110 mm
Spindle Chuck Type: MK 3
Weldon Shaft Holder: 19 mm
Speed Under Load: 90 / 120 / 180 / 230 RPM
Motor Output: 2 kW
Electrical Connection: 230 V, 1 Phase
Type of Current: AC
Mains Frequency: 50 Hz
Magnetic Holding Force: 32,000 N
Magnetic Foot Dimensions: 200 x 100 mm
Overall Dimensions: 330 x 125 x 476 mm
Weight: 24.8 kg
Sound Pressure Level: 97 dB(A)
Sound Power Level: 110 dB(A)
Measurement Uncertainty: K = 3 dB(A)
Vibration: Standard
Product Description
The Magnetic Drilling Machine is designed for high-performance drilling, capable of tackling large diameters quickly and economically. Its robust features make it ideal for various applications, especially in demanding environments.

Key Features:
Versatile Core Drilling: Accommodates core drills with a 19 mm Weldon shaft, providing stable guidance through a deep-mounted spindle sleeve.
High Magnetic Holding Force: With a maximum holding force of 32,000 N, this machine ensures secure operation during use.
Integrated Cooling System: Coolant is directed through the drill for enhanced performance and longevity.
Four Speed Settings: Adjust the speed to suit your specific drilling needs with options at 90, 120, 180, and 230 RPM.
User-Friendly Design: Easy conversion from core to full drilling in just a few steps, ensuring efficiency on the job.
Additional Features:
2000 Watt Motor: Provides powerful performance for demanding tasks.
Clockwise/Anti-clockwise Rotation: Offers flexibility in drilling applications.
Durable Construction: Built for reliability and safety, making it suitable for construction sites.
Delivery Information
Included Accessories:
Coolant tank and coolant line
Protection device
Operating tool
Plastic carrying case
Chain
Clearing cotter
The Magnetic Drilling Machine combines high-quality engineering with user-friendly features, making it an essential tool for professionals in construction and fabrication.
