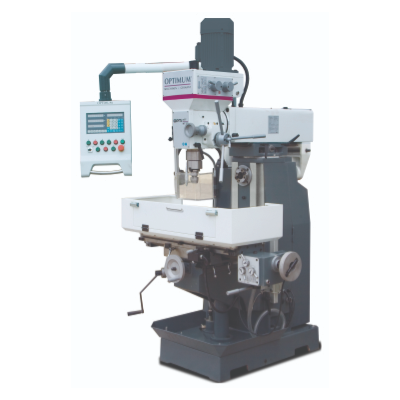

MICRO-TEC MILLING MACHINE MT 50

Universal Milling Machine for Horizontal & Vertical Milling Tasks – 3-Axis Digital Position Display

Overview
This universal milling machine is designed for both horizontal and vertical milling tasks, featuring a 3-axis digital position display (DPA 2000) for enhanced precision. Built for heavy-duty performance, the machine is crafted from high-grade vibration-absorbing grey cast iron to ensure stability during machining operations.

Key Features:

Versatile Milling: Capable of both horizontal and vertical milling, the machine allows for a wide range of applications including drilling, slant drilling, and side milling.
Digital Position Display (DPA 2000): Integrated 3-axis position display for easy and accurate monitoring of tool positions, reducing error rates and improving manufacturing efficiency.
Adjustable Spindle Head: The spindle head carrier can be rotated 180° and the milling head swivels 90° to the left and right, offering flexibility in various operations.
Manual & Automatic Travel Options: Manual and automatic travel options for the X, Y, and Z axes for easy operation, with feed options for the X-axis (8 steps from 24 – 720 mm/min).
Technical Specifications:
Motor Power: 4.5 kW / 400 V / 3 Ph ~50 Hz
Vertical Spindle Motor: 1.1 kW / 2.2 kW
Horizontal Spindle Motor: 1.5 kW
Coolant System: 40 W
Drilling Capacity (Steel S235JR): 30 mm (max), Continuous drilling 25 mm
Max Cutter Head Size: 100 mm
Max End Mill Size: 25 mm
Spindle Seats:
Vertical: ISO 40 DIN 2080
Horizontal: ISO 40 DIN 2080
Spindle Stroke: 120 mm
Vertical Throat: 240 – 650 mm
Vertical Spindle Speeds: 115 – 1,750 min-1 (8 gear stages)
Horizontal Spindle Speeds: 60 – 1,350 min-1 (9 gear stages)
Table Dimensions (L x W): 1,000 x 240 mm
Max Load on Cross Table: 160 kg
T-Slot Size: 14 mm (4 slots)
Travels:
X-axis Manual: 580 mm
Y-axis Manual: 200 mm
Z-axis Manual: 340 mm
X-axis Automatic: 500 mm
Dimensions (L x W x H): 2,270 x 1,500 x 2,100 mm
Total Weight: 900 kg
Machine Components & Equipment:
OPTI Operating Panel: Easy-to-use integrated control panel with position display for fast setup and minimal downtime.
LED Machine Lamp: OPTIMUM LED lighting with halogen light for improved visibility during machining.
Coolant System: Flexible metal hose with dosing and stop valve for precise coolant application.
Milling Head: Swivels 90° for added flexibility in cutting operations.
Cross Table: Large, precisely machined, and dimensionally accurate for high stability during machining.
Motorized Table Feed: Motor-driven table height adjustment and X-axis motorized feed for precision and ease of operation.
Foldable Cross Table Housing: The cross table housing is removable and foldable for easier storage and maintenance.
Delivery Includes:
Cog Drill Chuck (1 – 16 mm / B18)
Mandrel Drill Chuck (ISO40 / B18)
Horizontal Milling Spindle (Ø 22 mm / 27 mm)
Milling Chuck (Ø 4-16 mm)
Reducing Adapters (ISO 40-MK 3 / ISO 40-MK 2)
Drawbar (Vertical and Horizontal)
T-Nuts, Expeller, and Operating Tool
This universal milling machine provides exceptional flexibility, durability, and precision for a wide range of milling and drilling applications. Ideal for both horizontal and vertical milling tasks, it combines advanced digital position display technology, a versatile spindle system, and motorized travel for high efficiency and accuracy. Perfect for professional workshops or high-precision manufacturing environments.
