MICRO-TEC MILLING MACHINE OPTIMILL MH 22VD

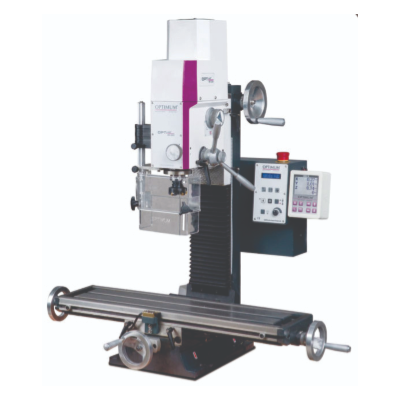

Drilling-Milling Machine with 3-Axis Position Display – MH 22VD

The MH 22VD Drilling-Milling Machine is a versatile and highly precise machine designed for both drilling and milling applications. Equipped with a digital position indicator (DRO 5) and 3-axis position display, this machine ensures enhanced accuracy and user-friendly operation. Ideal for small to medium-sized workshops, the MH 22VD offers robust performance with electronically variable speed control, adjustable feed spindles, and precise milling capabilities.

Technical Specifications:
Machine Dimensions:

Length: 945 mm
Width/Depth: 650 mm
Height: 950 mm
Weight: 120 kg (Net)
Power Specifications:

Drive Motor Power: 0.95 kW
Supply Voltage: 230V
Phase: Single-phase
Frequency: 50 Hz
Milling & Drilling Capacities:

Max Knife Head Size: 52 mm
Max End Mill Size: 12 mm
Max Drilling Capacity (Steel S235JR): 20 mm
Continuous Drilling Capacity (Steel S235JR): 16 mm
Vertical Spindle Projection: 170 mm
Vertical Spindle Mount: BT 20
Vertical Spindle Speed Range: 90 – 3000 RPM (2 Speed Ranges)
Horizontal Milling Length: 700 mm
Horizontal Milling Width: 180 mm
Horizontal Milling T-Slots: 12 mm (3 Slots)
Travel Range:

X-Axis Travel (Manual): 480 mm
Y-Axis Travel (Manual): 175 mm
Z-Axis Travel (Manual): 370 mm
Vertical Spindle to Horizontal Milling Distance: Min. 370 mm / Max. 370 mm
Max Horizontal Milling Load: 50 kg
Additional Specifications:

Vertical Spindle Quill Stroke: 50 mm
Vertical Spindle Pinole Diameter: 60 mm
Tilting Milling Head: ±90° (for flexible angular milling and drilling)
Key Features:
Electronically Controlled Drive:
The MH 22VD comes with an infinitely variable electronic drive for precise control over spindle speeds, ensuring smooth operation and flexibility for a wide range of machining tasks.

3-Axis Position Display with DRO 5:
Equipped with a digital position indicator (DRO 5) and magnetic tape encoders for all three axes (X, Y, Z), providing real-time, accurate positioning feedback.

High-Precision Milling & Drilling:
The machine features precisely ground dovetail guides with adjustable wedges, offering superior stability during operation. The feed spindles are backlash-free, adjustable for enhanced precision in milling and drilling.

Adjustable Spindles for Flexibility:
The feed spindles are adjustable without backlash using precision spindle nuts, which ensures minimal play and high accuracy in every operation.

Safety Features:
The height-adjustable protective screen with a micro-switch offers maximum protection against flying debris. The emergency stop switch provides added safety during operation, while the bellows guide protection keeps the machine clean and free from contaminants.

Versatile Milling Head:
The milling head can be tilted by ±90°, making it suitable for complex machining operations at various angles. This provides flexibility for both vertical and horizontal milling and drilling.

Stable and Durable Construction:
The MH 22VD features double-row angular contact ball bearings, which are adjustable without backlash, ensuring stable operation and high concentricity (= 0.015 mm in the quill). The machine's reversible pillar offers additional flexibility in workpiece machining.

User-Friendly Control Panel:
The machine includes a membrane keyboard with a clear digital speed display for easy operation, and the emergency stop switch ensures quick machine shutdown when needed.

Heavy-Duty Cross Table:
The cross table is solid, with T-slots, adjustable wedges, and hand wheels for precise adjustments. The table allows for smooth and accurate movement in the X, Y, and Z axes, making it easy to set up and secure workpieces.

Why Choose the MH 22VD Drilling-Milling Machine?
The MH 22VD Drilling-Milling Machine is an ideal choice for precise, high-performance milling and drilling operations. Its electronically controlled variable speed, 3-axis position display, and adjustable spindles ensure outstanding accuracy and versatility. Whether you are working on light or heavy-duty tasks, this machine can handle a wide variety of milling and drilling operations with ease. The inclusion of digital position feedback, tilting head, and precise motion control make it a reliable tool for demanding applications in metalworking, engineering, and manufacturing.

Upgrade your workshop with the MH 22VD for optimal performance, safety, and long-lasting durability. It’s designed to meet the needs of professionals who require a reliable, versatile machine for precision tasks.
