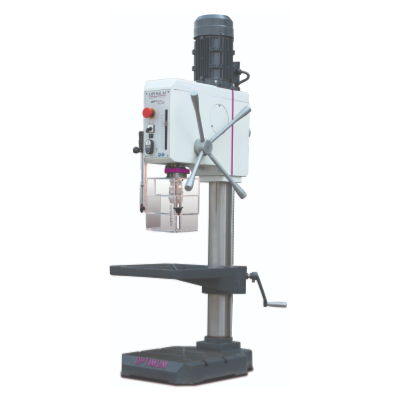

MICRO-TEC OPTI GEARED HEAD DRILL 26MM

Bench Drilling Machine with Gear
Technical Specifications:

Electrical Connection: 400 V / 3 Ph ~ 50 Hz
Total Connected Load: 1.1 / 1.5 kW
Drilling Capacity in Steel (S235JR): 24 mm
Continuous Drilling Capacity in Steel (S235JR): 21 mm
Throat Depth: 235 mm
Spindle Stroke: 127 mm
Spindle Seat: MT 3
Automatic Spindle Sleeve Feed: No
Spindle Speeds: 8 Steps, 75 – 2,900 min?¹
Table Work Surface (L x W): 380 x 380 mm
T-Slot Size: 14 mm, diagonal
Inclinable Drilling Table: No
Rotatable Drilling Table: 360 degrees
Max Distance Spindle – Table: 450 mm
Max Distance Spindle – Stand: 610 mm
Stand Work Surface (L x W): 350 x 322 mm
Stand T-Slot Size: 14 mm
Number of T-Slots on Stand: 2
T-Slot Distance on Stand: 120 mm
Column Diameter: 92 mm
Dimensions: 600 x 380 x 1,300 mm
Total Weight: 158 kg
Description:

This bench drilling machine features high precision and durability, making it ideal for both professional and industrial applications. The hardened and ground main spindle ensures exceptional true running accuracy, while the robust cast iron construction provides stability and longevity.

Features:

Gear System:

8 gear stages
Speed range: 75 – 2,900 min?¹
Integrated Drill Drift:

Facilitates easy tool changes with an ejection mechanism
Right-Hand/Left-Hand Rotation:

Versatile operation for various drilling needs
Machine Luminaire:

Integrated halogen lamp for improved visibility
Chuck Guard:

Provides optimal user protection, height-adjustable with a micro switch
Thick-Walled Casting Column:

Ensures high power absorption and stability
Drilling Table:

Large, solid, and precisely machined with transversally running T-slots
Heavily ribbed on the rear side for added support
Extent of Supply:

Adapter: MT 3-B16
Upgrade your workshop with this reliable and efficient bench drilling machine, designed to meet a variety of drilling demands with precision and ease.
