MICRO-TEC OPTI LATHE 460X1500MM - TH4615 WITH DPA

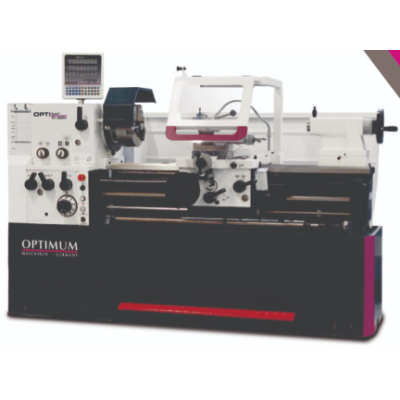

OPTIturn TH 4615D Precision Center Lathe

Introducing the OPTIturn TH 4615D, a state-of-the-art precision center lathe designed for unparalleled accuracy and ease of use. Equipped with the innovative digital position display DPA 21, this lathe sets a new standard in machining.

Technical Specifications:

Electrical Connection: 400 V / 3 Ph ~50 Hz
Total Connected Load: 5.8 kW
Coolant Pump Power: 100 W
Spindle Motor Power: 5.5 kW
Spindle Taper: MT 6
Spindle Seat: Camlock DIN ISO 702-2 No. 6
Quadruple Tool Holder Seat Height: Max. 25 x 25 mm
Center Height: 230 mm
Center Width: 1,560 mm
Turning Diameter Over Lathe Bed: 460 mm
Turning Diameter Over Cross Slide: 270 mm
Turning Diameter in Bed Bridge: 690 mm
Length of Bed Bridge: 240 mm
Bed Width: 300 mm
Spindle Speed Range: 25 – 2,000 RPM
Number of Speed Steps: 12
Top Slide Travel: 125 mm
Cross Slide Travel: 285 mm
Longitudinal Feed Range: 0.031 – 1.7 mm/rev (42 feeds)
Transverse Feed Range: 0.014 – 0.784 mm/rev (42 feeds)
Metric Pitch Range: 0.1 – 14 mm/rev (41 thread pitches)
Inch Pitch Range: 112 – 2 Gg/in (41 thread pitches)
Diametral Pitch Range: 4 – 112 (50 trapezoid threads)
Modular Thread Range: 0.1 – 7 (34 modular threads)
Tailstock Seat: MT 4
Tailstock Sleeve Travel: 130 mm
Dimensions (L x W x H): 2,765 x 1,065 x 1,550 mm
Net Weight: 1,977 kg
Description:
The OPTIturn TH 4615D is engineered for precision and efficiency, making it ideal for a wide range of machining tasks. Key features include:

Digital Position Display DPA 21: Provides real-time rotational speed data and enhances machining accuracy while reducing manufacturing times and error rates.
Robust Construction: Hardened and ground bed guideways ensure stability and durability. The lathe also features a separate coolant system for effective maintenance.
Precision Engineering: Guaranteed spindle nose accuracy of better than 0.015 mm, with smooth-running hardened gears operating in an oil bath for optimal performance.
Versatile Feeding Options: Mechanically adjustable longitudinal feeds and a comprehensive threading gauge for maximum flexibility in machining tasks.
Safety Features: Foot-operated emergency stop device and protective covers enhance user safety.
Key Features:

Main Spindle: Hardened and ground, supported by two adjustable precision taper roller bearings for reliable operation.
Central Lubrication: Integrated lubrication system for maintaining optimal performance and longevity.
Tailstock: Adjustable by ± 15 mm for taper turning, with a precise handwheel for fine adjustments.
Generous Chip Protection: Includes an integrated fluorescent tube for improved visibility.
Delivery Information:

Included Accessories:
Reducing Bush MT 6 / MT 4
Fixed Center MT 4
Steady Rest (Passage Ø max. 160 mm)
Follow Rest (Passage Ø max. 100 mm)
Quick Action Tool Holder SWH 5-B
Tool Holder (25 x 120 type D for square tools)
Threading Gauge
Coolant Equipment
Machine Lamp
Change Gear Kit
Operating Tool
All machines come filled with high-quality oil. Don’t forget to add a lathe chuck to complete your setup!
