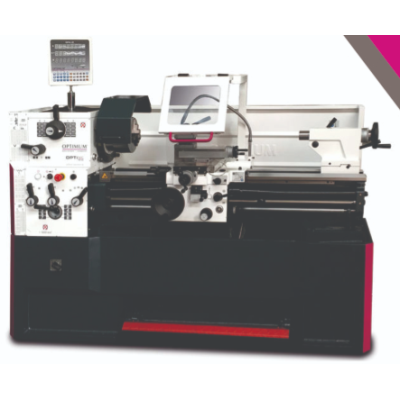

OPTIturn TH 4210D Center and Spindle Lathe

Experience precision engineering with the OPTIturn TH 4210D, designed for efficient and versatile machining.

Technical Specifications:

Length: 1,940 mm
Width/Depth: 915 mm
Height: 1,375 mm (max. height 1,600 mm)
Weight: 1,160 kg
Power Drive Motor: 4.5 kW
Total Connected Value: 4.6 kW
Electrical Voltage: 400 V
Phase: 3 Ph
Current Type: ~
Power Frequency: 50 Hz
Spindle Taper: Camlock DIN ISO 702-2 No. 6
Center Height: 210 mm
Distance Between Centers: 1,000 mm
Circumferential Diameter Over Machine Bed: 420 mm
Circumferential Diameter in Bed Bridge: 590 mm
Circumferential Diameter Over Cross Slide: 250 mm
Turning Length in Bed Bridge: 260 mm
Bed Width: 250 mm
Speed Range: 45 – 1,800 RPM
Number of Speed Ranges: 16
X-Axis Travel: 140 mm
Y-Axis Travel: 230 mm
Tailstock: MK 4
Tailstock Quill Stroke: 120 mm
Coolant System: 100 W pump
Steel Holder Pickup Height Max: 20 mm
Longitudinal Feed Range: 0.05 – 1.7 mm/rev (17 feeds)
Flat Feed Range: 0.025 – 0.85 mm/rev (17 feeds)
Metric Gradient Range: 0.2 – 14 mm/rev (39 slopes)
Inch Gradient Range: 72 – 2 Gg/in (45 slopes)
Diametral Pitch Gradient: 8 – 44 (21 gradients)
Module Thread Gradient: 0.3 – 3.5 mm (18 gradients)
Description:
The OPTIturn TH 4210D is a precision center and spindle lathe equipped with advanced technology for ease of operation and outstanding performance.

Construction: Built with a heavily ribbed Meehanite cast iron bed, featuring hardened and ground Z-axis guideways for exceptional stability and accuracy.
Spindle Performance: The spindle ensures a concentricity of better than 0.015 mm and operates in an oil bath, supported by two adjustable precision tapered roller bearings.
Coolant System: Includes a separate coolant tank with a level indicator and oil separator, facilitating easy maintenance and cleaning.
User-Friendly Controls: The digital position indicator (DPA 21) features a splash-proof membrane keypad for enhanced accuracy and reduced error rates.
Key Features:

Speed Control: Offers 16 adjustable speed settings along with a right/left rotation switch for versatile machining.
Safety Features: Emergency stop device with foot control and safety handwheels with release functions for added user safety.
Tailstock: Adjustable for taper turning with a fine scale handwheel (0.025 mm).
LED Machine Light: Integrated into the chip protection for improved visibility during operation.
Delivery Information:

Fixed Bezel Passage: Ø 15 – 145 mm
Running Bezel Passage: Ø 10 – 75 mm
Included Accessories: LED machine light, reduction sleeve MK 6 / MK 4, fixed centering point MK 4, change gear set, position stop with fine adjustment, initial machine filling with quality oil, and operating tool.
Don’t forget to add a lathe chuck to complete your setup!
