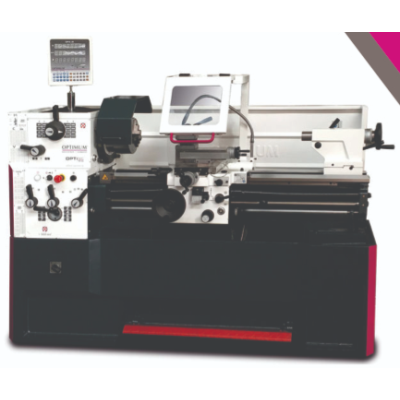

OPTIturn TH 4210 Center and Spindle Lathe

Discover precision and efficiency with the OPTIturn TH 4210, designed for versatile machining tasks with advanced features.

Technical Specifications:

Length: 1,940 mm
Width/Depth: 915 mm
Height: 1,375 mm (max. height 1,600 mm)
Weight: 1,160 kg
Power Drive Motor: 4.5 kW
Total Connected Value: 4.6 kW
Electrical Voltage: 400 V
Phase: 3 Ph
Current Type: ~
Power Frequency: 50 Hz
Spindle Taper: Camlock DIN ISO 702-2 No. 6
Center Height: 210 mm
Distance Between Centers: 1,000 mm
Circumferential Diameter Over Machine Bed: 420 mm
Circumferential Diameter in Bed Bridge: 590 mm
Turning Length in Bed Bridge: 260 mm
Bed Width: 250 mm
Speed Range: 45 – 1,800 RPM
Number of Speed Ranges: 16
X-Axis Travel: 140 mm
Y-Axis Travel: 230 mm
Tailstock: MK 4
Tailstock Quill Stroke: 120 mm
Coolant System: 100 W pump
Steel Holder Pickup Height Max: 20 mm
Longitudinal Feed Range: 0.05 – 1.7 mm/rev (17 feeds)
Flat Feed Range: 0.025 – 0.85 mm/rev (17 feeds)
Metric Gradient Range: 0.2 – 14 mm/rev (39 slopes)
Inch Gradient Range: 72 – 2 Gg/in (45 slopes)
Diametral Pitch Gradient: 8 – 44 (21 gradients)
Module Thread Gradient: 0.3 – 3.5 mm (18 gradients)
Description:
The OPTIturn TH 4210 is a robust center and spindle lathe featuring sophisticated technology for precise machining.

Construction: Made from heavily ribbed Meehanite cast iron, the machine features hardened and ground Z-axis guideways for stability and accuracy.
Spindle Performance: The spindle nose guarantees a concentricity of better than 0.015 mm and runs in an oil bath, supported by precision tapered roller bearings.
Coolant System: Equipped with a separate coolant tank, level indicator, and oil separator for efficient operation and easy cleaning.
User-Friendly Controls: Includes a digital position indicator (DPA 21) with a splash-proof membrane keypad for enhanced accuracy and reduced error rates.
Key Features:

Speed Control: 16 adjustable speed settings for diverse machining needs, along with a right/left rotation switch for flexibility.
Safety Features: Emergency stop device with foot control, safety handwheels with release functions for added security.
Tailstock: Adjustable for taper turning with fine scale handwheel (0.025 mm).
LED Machine Light: Integrated into the chip protection for improved visibility during operation.
Delivery Information:

Fixed Bezel Passage: Ø 15 – 145 mm
Running Bezel Passage: Ø 10 – 75 mm
Included Accessories: LED machine light, reduction sleeve MK 6 / MK 4, fixed centering point MK 4, change gear set, position stop with fine adjustment, initial machine filling with quality oil, and operating tool.
Ensure optimal performance by including the lathe chuck with your order!
