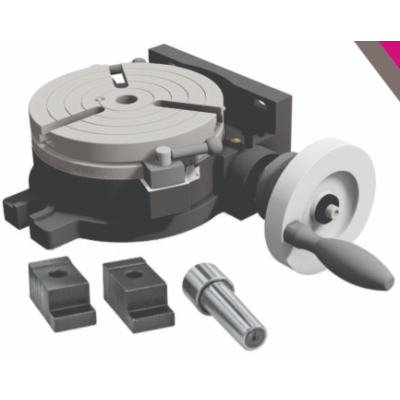

MICRO-TEC RT150 ROTARY TABLE

RT 150 Circular Dividing Table

Technical Specifications:

Chuck Diameter: 150 mm
Construction Height: 79 mm
Width: 156 mm
Length: 204 mm
Centre Height: 102 mm
Slot Width: 11 mm
Indirect Indexing Plate: Yes
Weight: 12 kg
Features:

High-Quality Construction: Made from premium Meehanite cast for durability.
Precision Bearings: Ensures smooth operation and accuracy.
Stability Under Load: Designed to maintain stability even when handling heavy workpieces.
Large Spindle Hole: Allows for clamping longer workpieces easily.
Quick-Action Dividing: Features locking discs for faster production speeds, ideal for mass production.
Hardened and Ground Screw: Provides reliable and precise adjustments.
Working Table with 360° Scaling: Offers full rotational capability for versatile machining tasks.
Handwheel Rotation: 1 complete turn equals 4° rotation, with a scaling of 2I for easy measurement.
Versatile Division Options: Up to 150 different divisions available using indirect dividing plates.
Optional CNC Add-On Kits: MK RT1 and MK RT2 for enhanced control of horizontal and vertical circular dividing tables.
The RT 150 Circular Dividing Table is an essential tool for precision machining, combining robust construction with advanced features for efficiency and accuracy.
